A sparse matrix is one with a large proportion of zero elements. Many important algorithms involve multiplying a sparse matrix by a vector, . This key computational ``kernel'' is the focus of the main laboratory project for this course.
Applications include:
double A[A_rows][A_cols]; double x[A_rows], y[A_rows]; for ( i=0; i<A_rows; i++ ) { sum = 0.0; for ( k=1; k<=A_cols; k++ ) sum += A[i][k]*x[k]; y[i] = sum; }To make this sparse we need to choose a storage scheme. A popular choice is ``compressed row'':
struct MatrixElement { long col; double val; }; /* no of non-zeroes in each row */ int SA_entries[A_rows]; /* array of pointers to list of non-zeroes in each row */ MatrixElement** SA = (struct MatrixElement**)malloc(sizeof(struct MatrixElement)*A_rows); /* When SA_entries is known we can allocate just enough memory for data */ for(i=0; i<A_rows; i++) { SA[i] = (struct MatrixElement*)malloc(sizeof(struct MatrixElement)*A_entries[i]); }The idea here is that for each row, we keep an array of the non-zero matrix elements, pointed to by
SA[i]
. For each element
SA[i][j]
we need its value, and its column number. So, if
A[i][j]
is the n
th non-zero in row i
, its value
will be stored at SA[i][n].val
, and SA[i][n].col
will be
j
.
Now the matrix-vector multiply can be written as:
for(i=0; i<A_rows; i++) { sum = 0; for(j=0; j<SA_entries[i]; j++) { sum += ((SA[i][j]).val)*x[(SA[i][j]).col]; } y[i] = sum; }
You can find the source code in
/homes/phjk/ToyPrograms/C/smv-V1Copy this directory tree to your own directory:
cd cp -r /homes/phjk/ToyPrograms/C/smv-V1 ./Now run some setup scripts:
cd smv-V1 source SOURCEME.csh ./scripts/PutInputFilesOnLocalDisk.sh ./scripts/MakeMatrices.sh 1 2 3This creates a directory /tmp/USERNAME/spmv/ and builds some sample matrices there. You should compile the application using the following commands:
cd solver/csteady/ makeNow you can run the program:
./csteady ../../inputs/courier1/ ../../inputs/courier1/STEADYThis reads input from the directory for problem size 1, and writes its output to a file called ``STEADY'' in the same directory. This is problem size 1 - very tiny. Problem size 3 is more substantial. 1
Try to make sure no other processes are active as they will interfere with your results. How many times do you need to repeat your experiments to get a reliable result?
cachegrind ./solver/csteady/csteady inputs/courier1/ inputs/courier1/STEADY
cachegrind --L2=64,1,16 ./solver/csteady/csteady inputs/courier1/ inputs/courier1/STEADY}This simulates a 1-way (ie direct-mapped) cache with 64, 16 byte lines. Now replace 64 with powers of two up to . See below for hints on how to automate this.

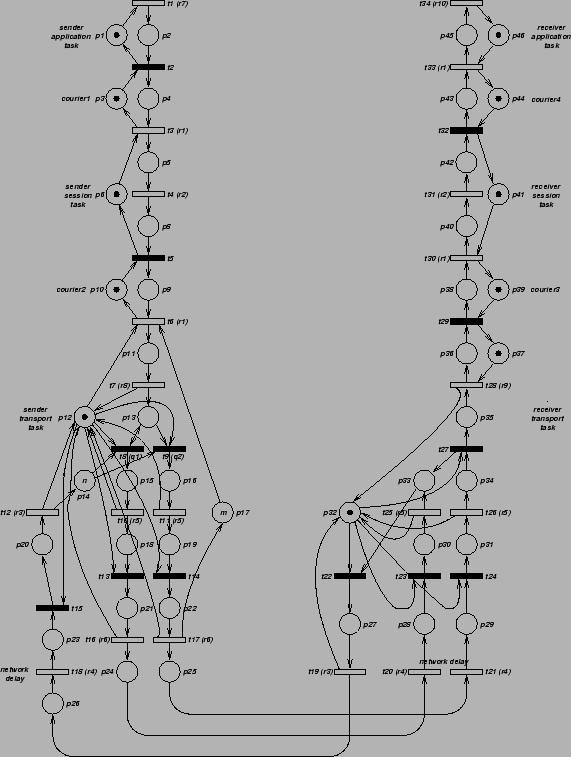

The program solves a Markov chain derived from a probabilistic Petri model (see see Figure 1) of a simple communication protocol. The problem size corresponds to the protocol's ``window size'' - the number of messages which can be in sent before the transmitter blocks awaiting acknowledgement. Execute the following commands to see the final results:
cd inputs/courier1 ./perfThe output shows the values for the following metrics of the protocol's performance:
Run cachegrind over a range of parameters you need to write a shell script. You might find the following Bash script useful:
#!/bin/bash -f for ((x=64; x <= 1048576 ; x *= 2)) do echo -n ``Size $x `` cachegrind --D1=$x,1,16 ./solver/csteady/csteady inputs/courier1/ inputs/courier1/STEADY \ 2>&1 | grep ``D1 miss rate'' done(The final line combines stdout and stderr and selects just the D1 miss rate from the simulation output). You can run this script by typing
./scripts/cg-loop.sh > resultsThis writes all the results to a file ``results''. It takes quite a while!
You need to convert the ``results'' file to a neat table of problem size against performance. Try:
awk '{print $2, $6, $8, $10}' <results > tableThis picks out the miss rate data columns. The output is sent to the file ``table''.
Try using the gnuplot program. Type ``gnuplot''. Then, at its prompt type:
plot 'table' with linespoints plot 'table' using 0:2 with linespoints, 'table' using 0:3 w lp, 'table' u 0:4 w lp
Paul Kelly, Imperial College London, 2004
