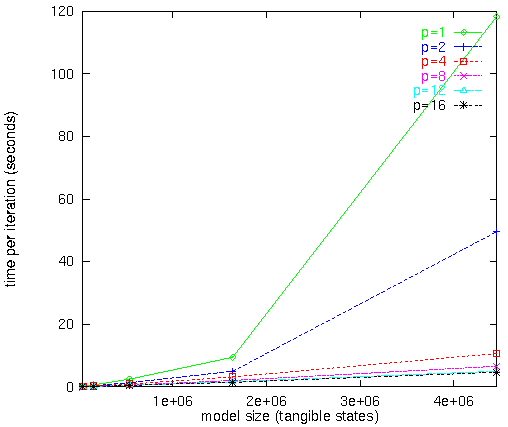

Moving onto the steady state solver, this graph shows the real time required per iteration when solving for the amount of time the system spends in each state (using the Conjugate Gradient squared method) for systems up to k = 7. Typically about 150-250 of these iterations are needed.Again the advantage of using multiple processors is clear. Click here for a graph showing the corresponding speedup.
