Irulan is a black box testing tool for Haskell. It uses the GHC API to automatically load Haskell modules and then automatically constructs and runs expressions to test the functions found therein. It can be used for systematic crash testing, property testing or test-suite generation and comparison for regression testing.
Irulan was developed by me, Tristan Allwood, with mentoring by Lecturer Cristian Cadar and my PhD supervisor Prof. Susan Eisenbach.
The sources for Irulan can be downloaded as a source tarball, or the
development version is available from Irulan's public monotone repository
description source
browser.mtn clone irulan.mtn-host.prjek.net
uk.co.zonetora.toral.irulan.6.12.3 irulan
Note the development
version may have many new cool features not (yet) documented and behave
differently to what is in the technical reports below, also it is not
always guaranteed to build.
Irulan should be built using the standard Haskell Cabal
infrastructure. cabal configure && cabal build && cabal
install
in an unpacked source tarball is your friend.
Note: Irulan has only been tested on x86 and x86_64 Linux systems and is currently only supported with ghc 6.12.3.
irulan --help
to see all the options.
Simplest use: $ irulan source Foo
.
If you want code coverage information use: irulan --with-stats-output=foo.stats source Foo
or
irulan source Foo --ghc-options='-fforce-recomp -fhpc'
At the end you'll get an irulan.tix
that the
hpc
tool can use to report or markup your sources. The
-fforce-recomp
isn't always necessary, but stops ghc getting
confused by stale mix/tix files.
Note, the example commandline and output in the papers have been prettified for presentation.
>cat Crash.hs module Crash where import Data.Either cantCrashThis :: Maybe Bool -> [Int] cantCrashThis Nothing = [123, error "crash this!"] cantCrashThis (Just True) = [] # Assuming expressions use show to visualise results: >irulan -d --depth=10 source Crash Crash: Results: cantCrashThis (Nothing) ==> ! crash this! cantCrashThis (Just False) ==> ! Crash.hs:(6,0)-(7,29): Non-exhaustive patterns in function cantCrashThis # Don't use show, actually pick values apart: >irulan -d --depth=10 --disable-show-results --enable-case-statements source Crash Crash: Results: case case cantCrashThis (Nothing) of _ : x -> x of x : _ -> x ==> ! crash this! cantCrashThis (Just False) ==> ! Crash.hs:(6,0)-(7,29): Non-exhaustive patterns in function cantCrashThis
>cat Prop.hs module Prop where prop_ListLength :: [a] -> [b] -> Bool prop_ListLength xs ys = length xs == length zs where zs = zip xs ys >irulan -p --enable-quiet -d --depth=10 source Prop Prop: Results: prop_ListLength (: ? ([])) ([]) ==> False
>cat V1.hs module V1(convert) where convert :: [Bool] -> [Bool] -> [Int] convert xs ys = [ if x then 2 else 3 + if y then 0 else 1 | x <- xs, y <- ys ] >cat V2.hs module V2(convert) where convert :: [Bool] -> [Bool] -> [Int] convert xs ys = [ helper x y | x <- xs , y <- ys ] helper :: Bool -> Bool -> Int helper y x = (if x then 2 else 3) + (if y then 0 else 1) >irulan -d --depth=20 --full-testsuite=v1.tst source V1 V1: Results: >irulan -d --depth=20 --full-testsuite=v2.tst source V2 V2: Results: >irulan tsa v1.tst v2.tst A: v1.tst B: v2.tst A: convert (: False (: False [])) (: False []) ==> [4,4] B: convert (: False (: False [])) (: False []) ==> [4,4] A: convert (: False (: False [])) (: True []) ==> [3,3] B: convert (: False (: False [])) (: True []) ==> [3,3] A~ convert (: False (: True [])) (: False []) ==> [4,2] B~ convert (: False (: True [])) (: False []) ==> [4,3] A: convert (: False (: True [])) (: True []) ==> [3,2] B: convert (: False (: True [])) (: True []) ==> [3,2] A: convert (: False []) (: False (: False [])) ==> [4,4] B: convert (: False []) (: False (: False [])) ==> [4,4] A: convert (: False []) (: False (: True [])) ==> [4,3] B: convert (: False []) (: False (: True [])) ==> [4,3] A: convert (: False []) (: False []) ==> [4] B: convert (: False []) (: False []) ==> [4] A: convert (: False []) (: True (: False [])) ==> [3,4] B: convert (: False []) (: True (: False [])) ==> [3,4] A: convert (: False []) (: True (: True [])) ==> [3,3] B: convert (: False []) (: True (: True [])) ==> [3,3] A: convert (: False []) (: True []) ==> [3] B: convert (: False []) (: True []) ==> [3] A~ convert (: True (: False [])) (: False []) ==> [2,4] B~ convert (: True (: False [])) (: False []) ==> [3,4] A: convert (: True (: False [])) (: True []) ==> [2,3] B: convert (: True (: False [])) (: True []) ==> [2,3] A# convert (: True (: True [])) (: ? (: ?1 [])) ==> [2,2,2,2] A~ convert (: True (: True [])) (: ? []) ==> [2,2] B~ convert (: True (: True [])) (: False []) ==> [3,3] B: convert (: True (: True [])) (: True []) ==> [2,2] A# convert (: True []) (: ? (: ?1 (: ?2 (: ?3 [])))) ==> [2,2,2,2] A# convert (: True []) (: ? (: ?1 (: ?2 []))) ==> [2,2,2] A~ convert (: True []) (: ? (: ?1 [])) ==> [2,2] B~ convert (: True []) (: False (: False [])) ==> [3,3] B~ convert (: True []) (: False (: True [])) ==> [3,2] B~ convert (: True []) (: True (: False [])) ==> [2,3] B: convert (: True []) (: True (: True [])) ==> [2,2] A~ convert (: True []) (: ? []) ==> [2] B~ convert (: True []) (: False []) ==> [3] B: convert (: True []) (: True []) ==> [2] A: convert (: ? (: ?1 (: ?2 (: ?3 (: ?4 (: ?5 [])))))) [] ==> [] B: convert (: ? (: ?1 (: ?2 (: ?3 (: ?4 (: ?5 [])))))) [] ==> [] A: convert (: ? (: ?1 (: ?2 (: ?3 (: ?4 []))))) [] ==> [] B: convert (: ? (: ?1 (: ?2 (: ?3 (: ?4 []))))) [] ==> [] A: convert (: ? (: ?1 (: ?2 (: ?3 [])))) [] ==> [] B: convert (: ? (: ?1 (: ?2 (: ?3 [])))) [] ==> [] A: convert (: ? (: ?1 (: ?2 []))) [] ==> [] B: convert (: ? (: ?1 (: ?2 []))) [] ==> [] A: convert (: ? (: ?1 [])) [] ==> [] B: convert (: ? (: ?1 [])) [] ==> [] A: convert (: ? []) [] ==> [] B: convert (: ? []) [] ==> [] A: convert [] ? ==> [] B: convert [] ? ==> []

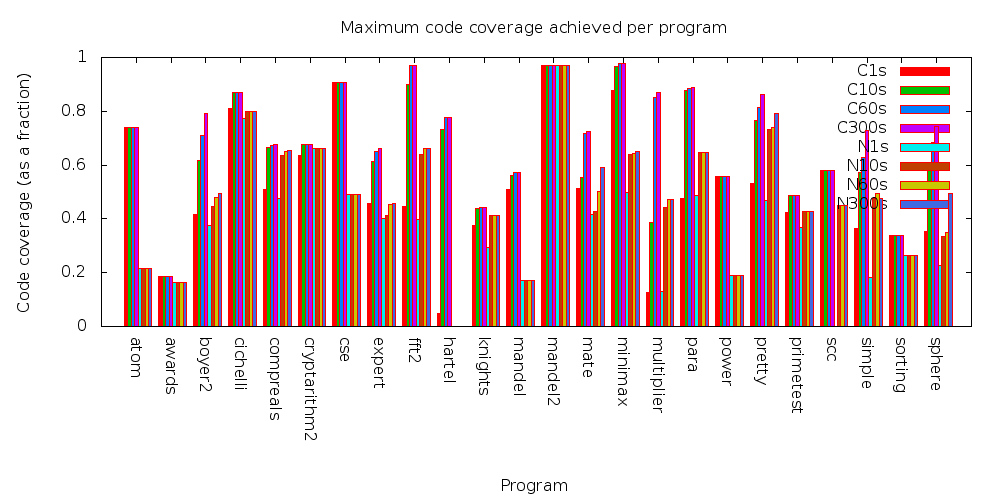

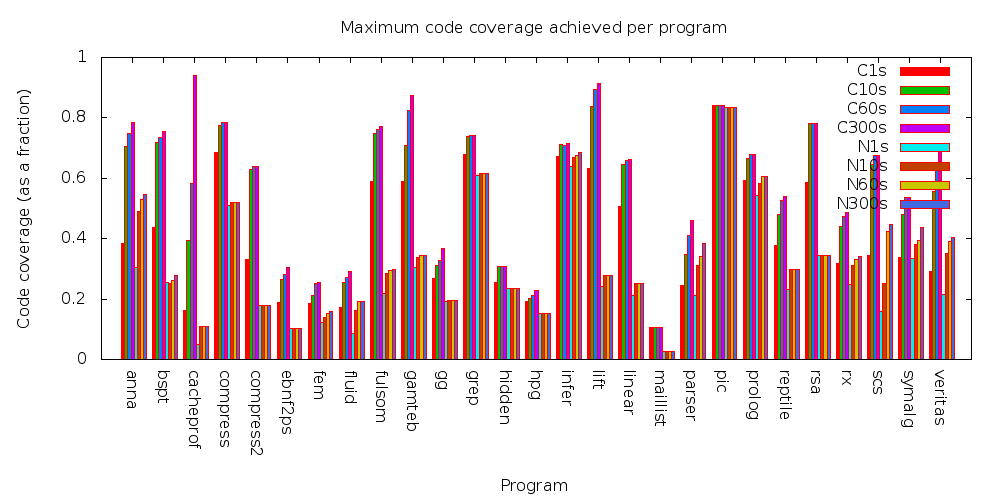

As described in the most recent paper, we ran Irulan on a filtered version of the real and spectral suites from nofib. The experimental results from all runs (1,10,60 and 300 seconds per module, with (C) and without (N) using case statment generation) are below.
We have compared Irulan to the other property testing libraries (QuickCheck, SmallCheck and Lazy SmallCheck) on the benchmark available from here. Full details will hopefully be published in the next few months in my thesis.
In the most recent draft paper we discuss several case studies based on using Irulan for regression or behaviour change testing.
