Tutorial 3 - Compiling the LTS process

Top  Previous  Next

OK

Prerequisites


Completed Tutorial 2



Compiling the process and examining the Output

1.Select the SEQUENCE process in the Outline View, as outlined below.
2.To compile the process, there are 3 methods:

a) Double-Click the SEQUENCE process label in the Outline View or,

b) Right-click the SEQUENCE process in the Outline View and select the Compile item from the popup menu list.

c) Click the Compile compile action button from the LTSA Eclipse toolbar.

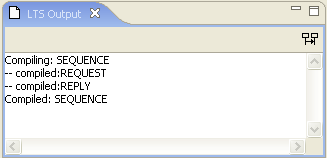

3.Switch or observe the LTS Output View.  If this view is not visible, select it by Window à Show View à Other à LTSA à LTS Output.

clip0016

4.Note the compilation result messages in the view.

END OF TUTORIAL - Now proceed to Tutorial 3
