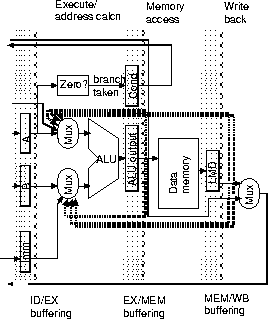

Figure: Data path bypassing multiple stages
- Additional path from ALU output via buffer
back to ALU inputs
- Additional path also needed from memory output back
to ALU input
